Nguồn gốc: | Trung Quốc |
Hàng hiệu: | SER or OEM |
Chứng nhận: | CE ROSH UN MSDS |
Số mô hình: | ER341245 |
Số lượng đặt hàng tối thiểu: | 500 cái |
---|---|
Giá bán: | Negotiable |
chi tiết đóng gói: | tiêu chuẩn/tùy chỉnh |
Thời gian giao hàng: | 7 ngày làm việc |
Khả năng cung cấp: | 100.000 chiếc mỗi ngày |
Mô hình: | ER341245H | Công suất: | 35000mAh |
---|---|---|---|
Kích thước: | Kích thước DD | Điện áp: | 3,6 vôn |
Ứng dụng2: | Công cụ MWD/LWD | Hình dạng: | Hình hình trụ |
Loại pin: | Pin lithium Thionyl clorua | Loại: | Pin Li/SocL2 công suất cao |
Ứng dụng: | Điện tử dân dụng | Chứng nhận: | CE MSDS,UL CE RoHS |
Nhiệt độ làm việc: | -40°C -85°C | bảo hành: | 12 tháng |
Gói: | gói công nghiệp | Thời gian bảo quản: | 10 năm |
Điểm nổi bật: | 5Ah Li SOCL2 Battery,ER341245 Li SOCL2 Battery,Li SOCL2 Battery 3.6V |

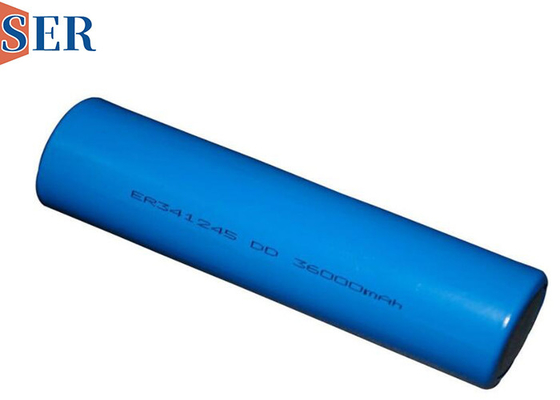

ER341245 3.6V DD size high capacity 35Ah Li-SOCL2 battery for automobile industry
Battery Features: |
ER341245 3.6V DD Size High Capacity 35Ah Li-SOCL2 Battery For Automobile Industry
Recommended battery model parameters:
Battery model: ER341245 LiSOCL2 battery
Battery brand: SER
Battery performance index
1. Battery capacity: (23±2℃, 2.0mA/2.0V) 35000mAh
2. Open circuit voltage: ≥3.64V
3. Chemical Composition: Li-SOCl2
4. Continuous working currents: 230mA
5. Large pulse working current: 460mA
6. Operating temperature range: -55~+85℃
7. Battery storage life: 10 years
(Storange: clean, below +20℃, dry and ventilated.)
8. Shelf Life: 10years (not printed on battery)
Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins
ER341245 LiSOCL2 Battery Advantages |
1. Stable high working voltage platform
The high voltage platform mentioned usually refers to a platform that can provide a high voltage power supply. In order to achieve a high voltage output, the circuit design and component selection of the platform need to meet certain requirements.
And the rated voltage of ER341245 LiSOCl2 battery is 3.6V, and the working voltage varies with the load, generally between 3.0V and 3.66V, which is the highest among all single batteries at present.
2. High volume specific energy / high mass specific energy
The mass specific energy is as high as 500WH/Kg, and the volume specific energy is as high as 1000WH/L, which is also the highest among all lithium batteries at present.
3. Longer storage life
Longer storage life usually refers to the ability of products or materials to maintain their functions for a long time. In the field of battery technology, this requires the battery material to have good chemical stability and mechanical properties, as well as good compatibility with the electrolyte and electrode materials. In addition, in the field of electronic information, long-term reliable storage of data and information is also one of the important development directions. The annual self-discharge rate of ER341245 Li-SOCL2 battery is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C.
4. Wide operating temperature range
The wide operating temperature range usually refers to the ability of the battery or material to work normally within a wide temperature range. In order to achieve a wide temperature range, the design and material selection of the product or material need to meet certain requirements. ER341245 LiSOCl2 battery can be used in extremely harsh environments, conventional batteries can be used in an environment of -55°C~+85°C, and high-temperature batteries can be used in an environment up to 150°C
5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.
ER341245,ER341245 battery,DD size battery,high capacity Li-SOCL2 battery,DD size Li-SOCL2 battery,Li-SOCL2 battery,ER341245 Li-SOCL2 battery
Applications |
Applications:
•Drilling / • Visonic Alarm Sirens
•Smart meter, water meter, heat meter, gas meter / • Smoke alarms, temperature monitors
• Intelligent Transportation (ETC) / • Ocean telemetry, positioning device
• Manhole cover protection, and road and bridge perception / • Utility Meter AMR
• Automotive electronics and anti-theft / • Oil well, mine detection and monitoring
• Underwater sonar, water buoys / • Military equipment, and individual equipment
Company Advantage |
|||||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. |
Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. |
Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. |
|||||
Efficient and innovative R & D team helps the company lead in product design and superior performance |
While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. |
For many years, the professional SER team has focused on the lithium battery industry, and has taken every product as a work of art with firmness, steadiness and excellence. |
Product Advantage |
||||
1. Full range of battery categories 17 years of development, SER have |
2. Safety The perfect protection IC has been used, |
3. Excellent and stable performance Strict control for cleanliness in dust-free |
||
4. OEM & ODM Ability Professional engineers have rich |
5. Technology Our dedicated and experienced engineers team always work together to our customers |
6. Delievry Fast delivery with standard package,will |
